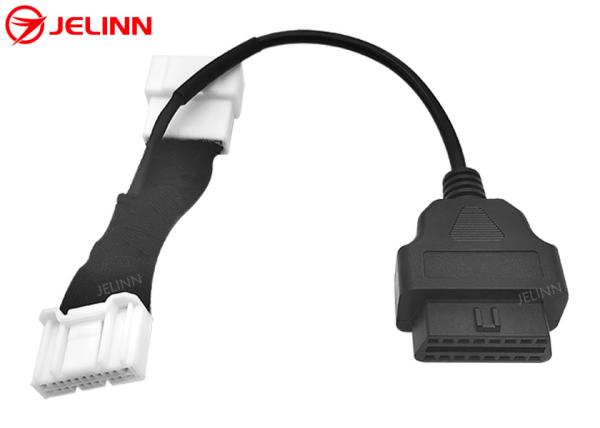

OBD2 OBD Adapter Cable 20 Pin to OBDII for Tesla Model 3 Year 2018​

Specification

We made plastic molds of the OBD2 OBDII OBD connectors and plugs. 24AWG or 26AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.

We can make different overmolds for the ends of OBD2 OBDII and DB9 connectors. If you don’t like the overmolds at the ends of OBD2 OBDII and DB9 connectors as shown in the pictures or you would like to have your own overmold with your company’s logo or you have special application requirements, we can and we have the ability to make a new overmold for you with reasonable charge. Moreover, we can even make it for free as long as the order quantity is 5000 pcs or more.

Pin assignment or pin out

The pin assignment or pin out can be like this:

As to this pin out, there are 8 pins wired, so there are 8 wires of 26AWG in the flat cable.

The pin assignment or pin out can be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.


Application

This cable is used to connect telematics, M2M devices, IoV (Internet of Vehicles) devices, fleet management devices, OBD2 GPS trackers, OBD2 CAN programming tools, ECU tuning tools or car performance tuning tools to vehicles' 16-Pin OBD2 female diagnostic ports. Some telematics or fleet management devices have DB9P female ports. To connect these kinds of devices to vehicles, DB9P male connector on this cable is needed.

In some cars, the OBD2 OBDII female diagnostic ports are covered by lids. If you would like to connect and install some OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars, this cable is perfect for this application. The overmolded plastic injection part at the ends of 16-Pin OBD2 OBDII female and male connectors makes the cable come out at a right angle 90-degree. The overmold is with slim design and the cable is flat and thin. These features make it easy to connect and install these kinds of OBD2 telematics or IoV devices to the OBD2 OBDII female diagnostic ports in these cars.


Sending an inquiry

If you haven’t found or don’t have time to look for the OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any OBD2 OBDII, 9-Pin J1939 or 6-Pin J1708 cables, adapters or connectors for you.
