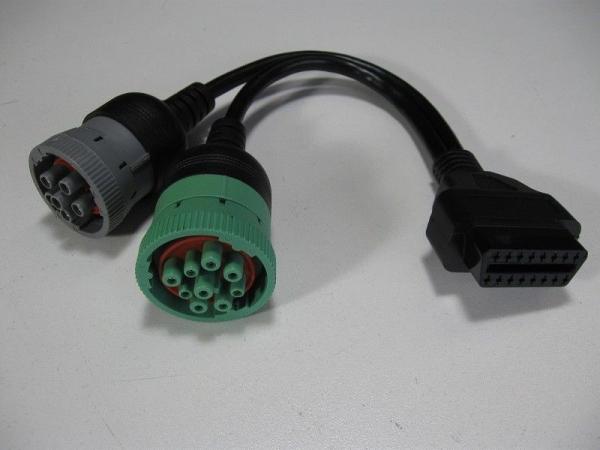

OBD2 OBDII Female to Green Deutsch 9-Pin J1939 Female and 6-Pin J1708 Female Y Cable

Specification

The 9-Pin J1939 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.

The 6-Pin J1708 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 6-Pin J1708 male receptacle assures that the connector won’t come unplugged accidentally.

The ends of Deutsch 9-Pin J1939 female and 6-Pin J1708 female sockets can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.

Overmolded

Not overmolded

The Deutsch 9 Pin J1939 female connector of this cable is Type 2, so its Pin F is with smaller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pin male receptacles.

Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):

Sometimes, the pin assignment or pin out can also be like this:

Sometimes, the pin assignment or pin out can also be like this:

The pin assignment or pin out can also be customized according to your needs.

Application

The common application is to connect telematics or fleet management devices such as GPS Trackers or ELDs (Electronic Logging Devices) with OBD2 ports to older 6 pin J1708 round diagnostic ports in medium and heavy duty vehicles model years from the early-to-mid-2000s or to 9 pin J1939 diagnostic ports.

This cable will also allow OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to connect to commercial vehicles with the J708 6 Pin or J1939 9 Pin diagnostic ports.

Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
