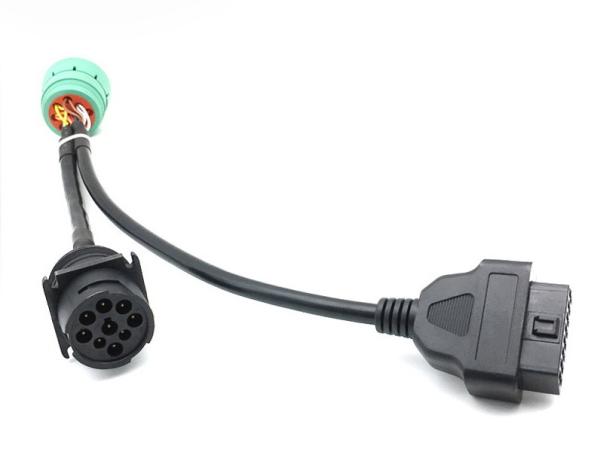

Green Deutsch 9-Pin J1939 Female to OBD-II 16-Pin Female and J1939
Male Truck Y Cable
Specification
| J1939 female socket | equivalent of Deutsch HD16-9-1939S-P080 |
| Type of J1939 female socket | Type 2 |
| J1939 male receptacle | equivalent of Deutsch HD10-9-1939P |
| Type of J1939 male receptacle | Type 1 |
| OBD2 female connector | with KET terminals |
| Wire | 20AWG, pure copper |
| Material of J1939 connector | PA66 + glass fiber |
| Material of OBD2 connector | PA66 |
| Pin assignment or pin out | customized |
| Cable length | customized |
| Pins or terminals | copper, nickel-plated or gold-plated |
| Contact Resistance | 3 ohm max. |
| Insulation Resistance | 5M ohm min. |
| Working Temperature | −25℃ ~ +85℃ |
| Testing | 100% open, short and mis-wire testing |
| Testing Voltage | DC300V 5M ohm/10ms |
| Warranty | 1 year |
The end of J1939 female and male connectors can be overmolded or
not, according to your needs.
Overmolded
Not overmolded
The Deutsch 9 Pin female socket is Type 2, so its Pin F is with smalller diameter as
Pin C and Pin J. Type 2 J1939 female sockets can be inserted into
Type 1 or Type 2 J1939 male receptacles.
The Deutsch 9 Pin male receptacle is Type 1, so its Pin F is with bigger diameter.
Type 1 or Type 2 J1939 female sockets can be inserted into Type 1
J1939 male receptacles.
The OBD2 female connector is with KET terminals which make the OBD2
female connector more endurable.
Pin assignment or pin out
Generally speaking, the pin assignment or pin out will be like this
(4 pins to be connected):
| OBD2 female | Signal | J1939 female | J1939 male |
| 4 or 5 | Ground | A | A |
| 16 | Battery | B | B |
| 6 | J1939, CAN-H | C | C |
| 14 | J1939, CAN-L | D | D |
Sometimes, the pin assignment or pin out can also be like this (6 pins to be connected):
| OBD2 female | Signal | J1939 female | J1939 male |
| 4 or 5 | Ground | A | A |
| 16 | Battery | B | B |
| 6 | J1939, CAN-H | C | C |
| 14 | J1939, CAN-L | D | D |
| 2 | J1708-H | F | F |
| 10 | J1708-L | G | G |
Sometimes, the pin assignment or pin out can also be like this (6 pins to be connected):
| OBD2 female | Signal | J1939 female | J1939 male |
| 4 or 5 | Ground | A | A |
| 16 | Battery | B | B |
| 6 | J1939, CAN-H | C | C |
| 14 | J1939, CAN-L | D | D |
| 12 | J1708-H | F | F |
| 13 | J1708-L | G | G |
The pin assignment or pin out can also be customized according to
your needs.
Application
This cable is used to connect telematics, fleet management devices or trucking technology
devices such as GPS Trackers or ELDs (Electronic Logging Devices) to commercial vehicles that have the J1939 9-pin round Deutsch
ports.
This cable will also allow OBD2 diagnostic devices or scanners or fault code readers (with the appropriate software) to connect to the round J1939
connector.
