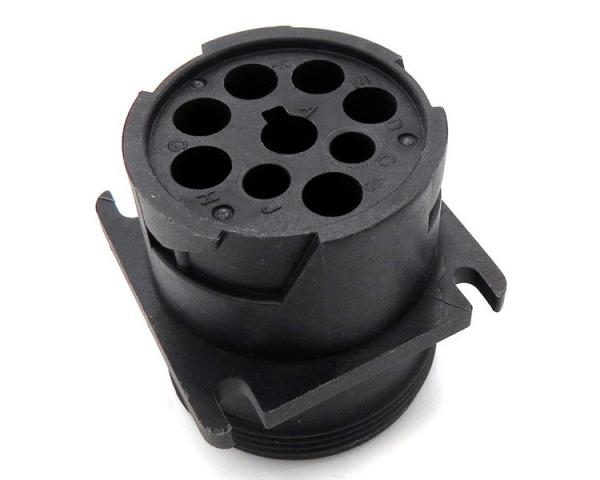

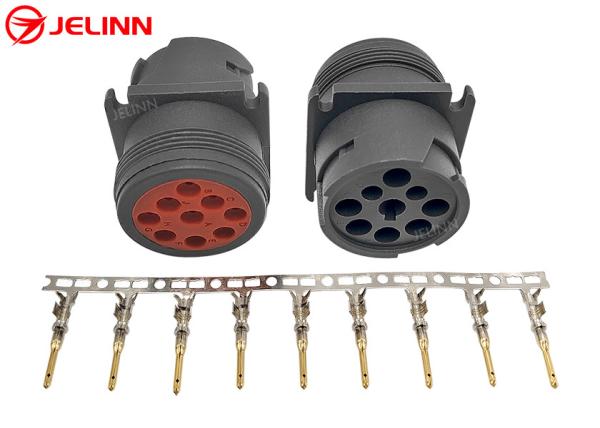

Type 1 Deutsch 9 Pin J1939 Male Plug Connector with 9 PCS of Pins


Specification

We made the plastic mold of this 9-Pin J1939 male plug by ourselves because we have a full set of machines and equipments and a good team of staff for making plastic molds. We also have injection molding machines which can manufacture these 9-Pin J1939 male plugs according to the mold.

Remember that this is a male connector because it is with pins.

The Deutsch 9 Pin J1939 male plug is Type 1, so its Pin F is with bigger diameter than Pin C and J. Type 1 or Type 2 J1939 9-Pin female sockets can be inserted into Type 1 J1939 9-Pin male plugs.

They can mate with the following connectors:

original or equivalent of Deutsch HD16-9-1939S

original or equivalent of Deutsch HD16-9-1939SE

original or equivalent of Deutsch HD16-9-1939S-P080

original or equivalent of Deutsch HD16-9-1939SE-P080

original or equivalent of Deutsch HD17-9-1939S

original or equivalent of Deutsch HD17-9-1939SE

original or equivalent of Deutsch HD17-9-1939S-P080

original or equivalent of Deutsch HD17-9-1939SE-P080

Pin assignment or pinout

The pin assignment or pinout of 9-Pin J1939 male plug is like this:

The central pin is Pin A. The pin that the key tab of PIn A faces to is Pin F. The sequence of the pins B to J is anticlockwise.


Application

These 9-Pin J1939 male plugs can be used to replace the original 9 pin J1939 plugs equipped in trucks. They can also be used to manufacture 9-Pin J1939 cables and adapters.
