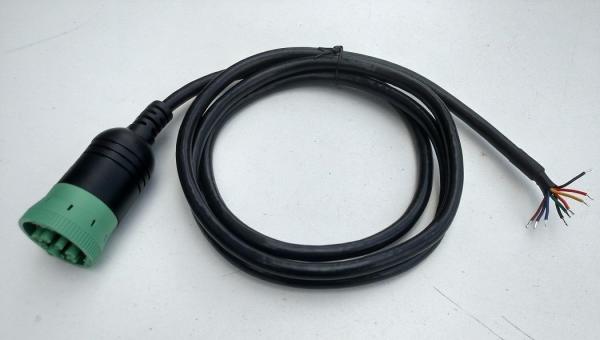

Green Type 2 J1939 Deutsch 9-Pin Female to Open End CAN Bus Cable


Specification

The 9-Pin J1939 female connector is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.

The Deutsch 9 Pin J1939 female connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.

Pin assignment or pin out

Generally speaking, all 9 pins of the J1939 female connectors are wired, so there are 9 wires of 20AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.

The pin assignment or pinout can also be customized according to your needs.

Application

This Green Type 2 J1939 Deutsch 9-Pin Female to Open End CAN Bus Cable is used for testing purposes.
