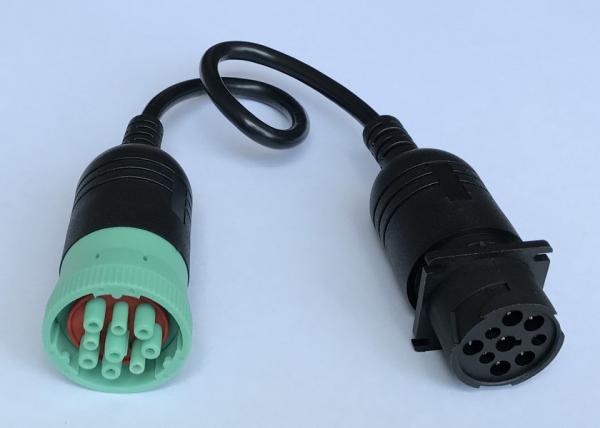

Green Deutsch 9 Pin J1939 Female to Type 1 J1939 Male CAN Bus Cable


Specification

The ends of Deutsch 9-Pin J1939 female and male connectors can be overmolded or not, according to your needs.

Overmolded

Not overmolded

The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.

The Deutsch 9 Pin J1939 female connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.

Pin assignment or pinout

In most cases, all 9 pins of the J1939 male and female connectors are connected, so there are 9 wires of 18AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.

The pin assignment or pinout can also be customized according to your needs.


Application

Some telematics, fleet management devices or trucking technology devices with 9-pin J1939 connector need to be installed in dash. This Deutsch 9 Pin J1939 Female to Male Cable can help extend the device to the dash.

Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
