    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable

    Ask Lasest Price
    Brand Name : OEM
    Model Number : J1939
    Certification : RoHS
    Price : Please email us for prices
    Payment Terms : T/T, Payoneer, Western Union, PayPal, L/C
    Supply Ability : 50,000 pcs per month
    Delivery Time : 3-30 working days
    • Product Details
    • Company Profile

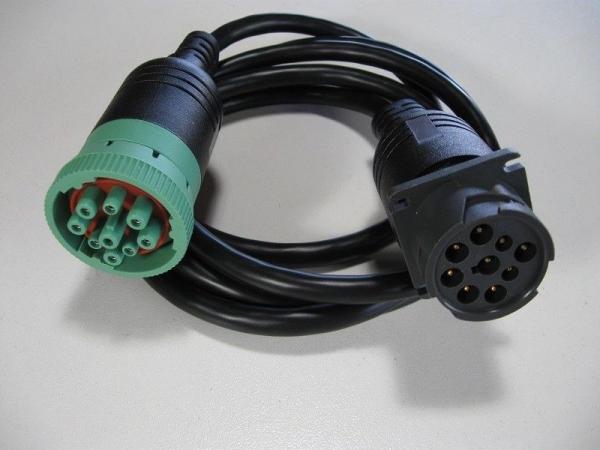

    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable

    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable


    Specification


    9-Pin J1939 female socketequivalent of Deutsch HD16-9-1939S-P080
    Type of 9-Pin J1939 female socketType 2
    Color of 9-Pin J1939 female socketGreen
    9-Pin J1939 male receptacleequivalent of Deutsch HD10-9-1939P
    Type of 9-Pin J1939 male receptacleType 1
    Wire18AWG, pure copper
    Material of 9 Pin J1939 connectorsPA66 + glass fiber
    Pin assignment or pinoutcustomized
    Cable lengthcustomized
    Pins or terminalscopper, nickel-plated or gold-plated
    Contact Resistance3 ohm max.
    Insulation Resistance5M ohm min.
    Working Temperature−25℃ ~ +85℃
    Testing100% open, short and miss-wire testing
    Testing VoltageDC300V 5M ohm/10ms
    Warranty1 year

    The ends of Deutsch 9-Pin J1939 female and male connectors can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.


    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable

    Overmolded


    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable

    Not overmolded


    The 9-Pin J1939 female socket is with a locking ring. Rotating the locking ring to the right place after plugging to a 9-Pin J1939 male receptacle assures that the connector won’t come unplugged accidentally.


    The Deutsch 9 Pin J1939 female connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 9-Pin female connectors can be inserted into Type 1 or Type 2 J1939 9-Pn male receptacles.


    Green Type 2 Deutsch 9 Pin J1939 Female to Type 1 J1939 Male Cable



    Pin assignment or pinout


    In most cases, all 9 pins of the J1939 male and female connectors are wired, so there are 9 wires of 18AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.


    The pin assignment or pinout can also be customized according to your needs.


    Application

    Some telematics, fleet management devices or trucking technology devices with 9-pin J1939 connector need to be installed in dash. This Deutsch 9 Pin J1939 Female to Male Cable can help extend the device to the dash.



    Sending an inquiry

    If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
