Type 1 J1939 Deutsch 9 Pin Female to Threaded J1939 Male Adapter


Specification

The Threaded Deutsch 9 Pin J1939 male connector of this cable is Type 1, so its Pin F is with bigger diameter. Type 1 or Type 2 J1939 9-Pin female sockets can be inserted into Type 1 J1939 9-Pin male receptacles.

The 9-Pin J1939 male receptacle is threaded jamnut mount style common on Paccar trucks (Kenworth, Peterbilt, Western Star).

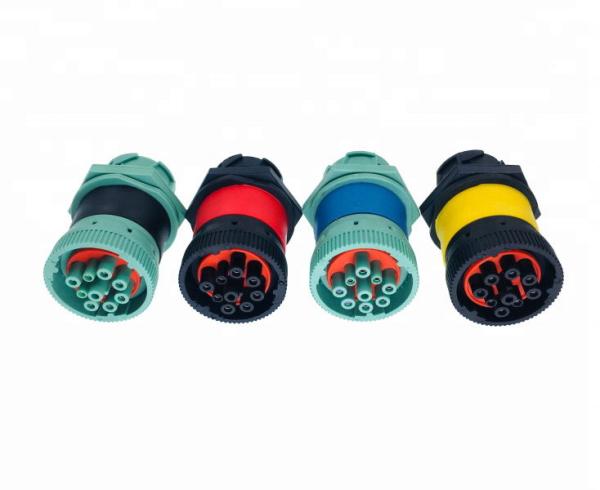

The color of the overmolded plastic injection part in the middle of this adapter can be different and customised.


Pin assignment or pin out

Generally speaking, the pin assignment or pin out of this adapter is like this:

As to this pin out, all 9 pins of the J1939 male and female connectors are wired, so there are 9 wires of 20AWG inside the overmolded plastic injection part in the middle of this adapter. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need and the price can be lower because the raw material and labor cost is lower.

Application

This adapter is usually used to connect some telematics, fleet management devices or trucking technology devices with 9-pin J1939 ports to trucks. It is smaller than a 9 Pin J1939 Female to Male Cable, so it can help save some space when connecting and installing telematics devices.


Sending an inquiry

If you haven’t found or don’t have time to look for the 9-Pin J1939, OBD2 OBDII or 6-Pin J1708 cables, adapters or connectors in our website, feel free to let us know what 9-Pin J1939, OBD2 OBDII or 6-Pin J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any 9-Pin J1939, OBD2 OBDII or 6-Pin J1708 cables, adapters or connectors for you.
