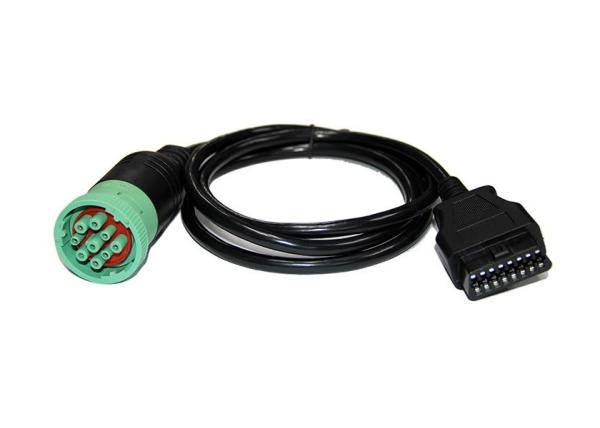

Green J1939 Deutsch 9 Pin Female to J1962 OBD2 OBDII 16 Pin Female Cable


Specification

We opened plastic molds of the connectors, sockets, plugs and receptacles. 18AWG pure copper quality wires are employed to manufacture these cables. We can always make the cables with excellent connectivity and durability.

The end of J1939 female socket can be overflow molded or not, according to your needs.

Overflow molded

Not overflow molded

The Deutsch 9 Pin female connector of this cable is Type 2, so its Pin F is with smalller diameter as Pin C and Pin J. Type 2 J1939 female connectors can be inserted into Type 1 or Type 2 J1939 male receptacles.



The OBD2 female socket is with KET terminals which make the OBD2 female socket more endurable.




Pin assignment or pin out

Generally speaking, the pin assignment or pin out will be like this (4 pins to be connected):

Sometimes, the pin assignment or pin out can also be like this (6 pins to be connected):

Sometimes, the pin assignment or pin out can also be like this (6 pins to be connected):

The pin assignment or pin out can also be customized according to your needs. If there is no need for more pins to be connected, we suggest we just connect the necessary pins you need. If more pins are connected, the price of the cable will be higher because the raw material and labour cost will be higher.


Application

This is a cable between the J1939 round Deutsch 9-pin connector (test equipment side - mates to the J1939 vehicle) and an OBD2 style 16-pin connector (female vehicle side - mates with an OBD2 test connector). The J1939 +/- data lines are connected to the CAN +/- lines, and the power and ground lines are also connected.

This cable is usually used to connect a GPS Tracker that is meant for an OBD2 vehicle to a commercial vehicle that has the 9-pin round Deutsch connector. The power lines are appropriately connected to provide power to the GPS tracker.

This cable will also allow an OBD2 diagnostic tool or scanner or fault code reader (with the appropriate software) to connect to the round J1939 9-pin port. Bear in mind that most OBD2 software and scanners are based on reading PIDs, which are single parameters. J1939 is a PGN based protocol, where each PGN contains multiple parameters. Your OBD2 diagnostic tool or scanner or fault code reader must be able to handle PGNs if it is to work with this cable.
