Black Type 1 J1939 Deutsch 9-Pin Female to Open End CAN Bus Cable


Specification

The J1939 female connector is with a locking ring. Rotating the locking ring after plugging assures that the connector won’t come unplugged accidentally.

The end of Deutsch 9-Pin female socket can be overmolded or not, according to your needs. If the ends are overmolded, the cables are more sturdy and durable. If not overmolded, the price can be lower because the raw material and labour cost is saved.

Overmolded

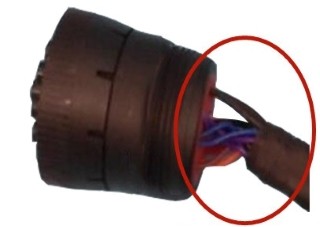

Not overmolded

Pin assignment or pin out

Generally speaking, all 9 pins of the J1939 female connector are connected, so there are 9 wires of 18AWG in the cable. If there is no need for all 9 pins to be connected, the price can be lower because the raw material and labour cost can be lower.

The pin assignment or pin out can also be customized according to your needs.


Application

This Black Type 1 J1939 Deutsch 9-Pin Female to Open End CAN Bus Cable is used for testing purposes.

Sending an inquiry

If you haven’t found or don’t have time to look for the J1939, OBD2 or J1708 cables, adapters or connectors in our website, feel free to let us know what J1939, OBD2 or J1708 cables, adapters or connectors you need by sending an inquiry (If you have a picture, please attach it in the inquiry). We can also customize any J1939, OBD2 or J1708 cables, adapters or connectors for you.
